Performance Package Builder to suit 200 Series LandCruiser

This is a guide only, prices and parts are subject to change.

Offers, pricing and fitment details valid only at Richards Auto Electrical. Not valid at our resellers.

Pricing includes GST.

Pricing current as of April 2026

Category: TO SUIT LC200

Lockup Kits & Remapping - Fitted Pricing

Lockup KitTransmission Remap

To correct the gear changing behaviour
Allows 6th gear to self engage in all shift patterns between 95km/h-100km/h
Allows cruise control to utilise engine power & torque without gear shuffling
Optional to open up 5th & 6th gear in Low Range (on request)
Allow ½ Day to Complete plus a demonstration drive with

Engine Remap - Stage 1 - TouringSuits Factory Exhaust System & DPF Back Systems

Engine Remap increase engine torque output by approx. 100NM
Increased longevity of engine by, removal of EGR cycle without modification to engine or inlet.
Cleaner engine oil without mixing carbon build up.
Reduction in acceleration lag by remapping of torque request v rpm table, not amplification of accel signal like ETC button.
Revised boost limiting tables to achieve peak boost at earlier RPM. Increase in overall factor limit to 16PSI. (12PSI STD)
Air to Fuel Ratio conservative at 18:1 @1600RPM

Engine Remap - Stage 2 - Touring With Turbo Back Exhaust System Already Fitted - or choose one below for us to fit

Stage 1 plus increases:

Increased Engine Torque output - stage 2
Increased Engine Horsepower - stage 2
Re-scaled fuelling for more efficiency and better economy. 30% increase in low to mid-range power between 1650rpm and 2800RPM.
Very flat torque curve
Increased turbo boost efficiency and lifted maximum to 18.5 PSI
Engine performance Emphasis on torque and economy SUITABLE FOR towing.
EGR tables modified and control switched off. No requirement for EGR Blank off.
Modified Cold start fuelling to reflect changes to EGR valve settings.
Tweaked Throttle map to reflect added torque in lower and midrange pedal movement.
Progressive pedal feel from 0-100%.

Add - DYNO RunBefore & After Run on our in house 4x4 Dyno

LC200 MANTA -2007 to 2015 - Exhaust System - Fitted Pricing

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Aluminised Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Stainless Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Aluminised Steel
Noise Level	Medium
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Stainless Steel
Noise Level	Medium
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Aluminised Steel
Noise Level	Loud
Pipe Size	2.5in Dual into 3in Single

Turbo Back with Cats - Quiet - MKTY0037 Centre Muffler & Rear Resonator (Mild Steel)STAINLESS STEEL - Turbo Back with Cats - QuietCentre Muffler & Rear Resonator Turbo Back with Cats - Noise Medium Delete Centre Muffler (Mild Steel)STAINLESS STEEL - Turbo Back with Cats - Noise Medium Delete Centre Muffler (Stainless Steel)Turbo Back with Cats - Loud NO MUFFLERS (Mild Steel)STAINLESS STEEL - Turbo Back with Cats - Loud NO MUFFLERS (Stainless Steel)

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Stainless Steel
Noise Level	Loud
Pipe Size	2.5in Dual into 3in Single

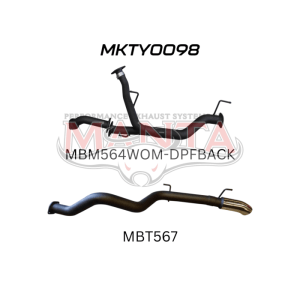

LC200 MANTA - 2015 to 2021 - Exhaust System's - Fitted Pricing

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Aluminised Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	Turbo Back with Cats
Material	Stainless Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

More Information
MPI Brand	Manta
System Type	DPF Back
Material	Aluminised Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

Turbo Back with Cats - Quiet - MKTY0101Please see more information buttonSTAINLESS STEEL - Turbo Back with Cats - Quiet - SSMKTY0101Please see more information buttonDPF BACK - 2.5" Twin into Single 3"Our most popular system - Keeps DPF in placeSTAINLESS STEEL - DPF BACK - 2.5" Twin into Single 3"Our most popular system - Keeps DPF in place

More Information
MPI Brand	Manta
System Type	DPF Back
Material	Stainless Steel
Noise Level	Quiet
Pipe Size	2.5in Dual into 3in Single

LC200 AIR INTAKE - Fitted Pricing

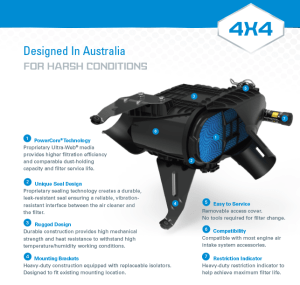

DONALDSON POWERCORE AIR FILTER$1,362.50

The Key Advantages of PowerCore^®4x4

High-Efficiency Filtration

Outperforms standard cellulose filters with higher initial efficiency.

Long-lasting Protection

Maintains consistently high efficiency throughout its lifespan.

Ultimate Engine Safety

Protects against sub-micron particles for industry-leading engine protection.

Extended Filter Life

Exceptional dust-holding capacity for longer-lasting performance PowerCore^® 4x4 housings and filter kits have become the benchmark for high-performance, reliable filtration in the most challenging terrain. Equip your LandCruiser with the best—choose Donaldson.

SAFARI ARMAX SNORKEL$1,200.00

SS89HP (Does not suit GX Model with OE Raised Air Intake)

SS89HPOER - Supplementary kit to allow fitment of SS89HP in place of OE Raised Air Intake (Both SS89HP & SS89HPOER must be purchased to install the snorkel on a Toyota LandCruiser 200 Series GX Model)

With the popularity of performance upgrades using engine management and larger exhausts, Safari 4x4 Engineering took the decision to design a snorkel system that not only raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner, but also would be able to deliver the necessary volume of air into the engine, therefore maximising the performance enhancements potential.

Huge air flow is but one aspect of the ultimate in snorkel design suitable for the Toyota 200 Series Landcruiser 09/2015 Onwards 4.5L Diesel 1VD-FTV & 4.6L V8 DOHC VVT-i Petrol (1UR-FE Engine) . The Safari ARMAX snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari ARMAX air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

SAFARI V-SPEC SNORKEL$1,200.00

Safari Part Number: SS89HF

*Does not suit GX Model with OE Raised Air Intake

The SS89HF Safari Snorkel to suit the Toyota 200 Series Land Cruiser is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 09/2015 Onwards 4.5L Diesel 1VD-FTV & 4.6L V8 DOHC VVT-i Petrol (1UR-FE Engine) engines. With the huge air flow demands of the Toyota 200 Series Land Cruiser 09/2015 Onwards 4.5L Diesel 1VD-FTV & 4.6L V8 DOHC VVT-i Petrol (1UR-FE Engine) engine, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner. Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
